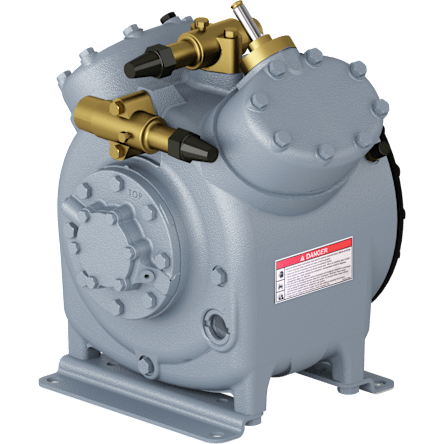

05K 05K
05K
Open-Drive
Reciprocating Compressor
4 - 8 Nominal HP
12 - 24 Nominal Cfm
Built on Carlyle's legacy of reliable compressor innovation, the 05K open-drive compressor combines rugged construction, high-efficiency performance, and application flexibility in a compact, service-friendly design.
Featuring advanced twin-port valve technology, a high-volume lubrication system, and 50% unloading capability, the 05K is designed to deliver dependable operation in demanding air conditioning and refrigeration applications.
Features
- Open-drive reciprocating compressor
- High-efficiency twin-port valve technology
- Positive displacement reversible oil pump
- Oversized oil sump for reliable lubrication
- 50% unloading capability for part-load operation
- Hot gas bypass and suction cutoff control options
- Belt-drive and direct-drive flexibility
- Service-friendly maintenance features
- Built-in inlet protection screen
- Proven Carlyle reliability for AC and refrigeration applications
Performance & Physical Data
| Model | Displacement
at 1750 RPM |
Number
of Cylinders |
Oil Charge | Net Weight | Dimensions | Suction
Line Size (in) |
Discharge
Line Size (in) |
||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| CFM | Pints | Liters | Lb | Kgs | Length (in) | Width (in) | Height (in) | ||||
| 05KA224 | 24.7 | 4 | 5.5 | 2.6 | 108 | 49 | 17 | 17 | 16 | 1 3/8 | 1 1/8 |
