Built for Next-Generation Efficiency and Low-GWP Systems

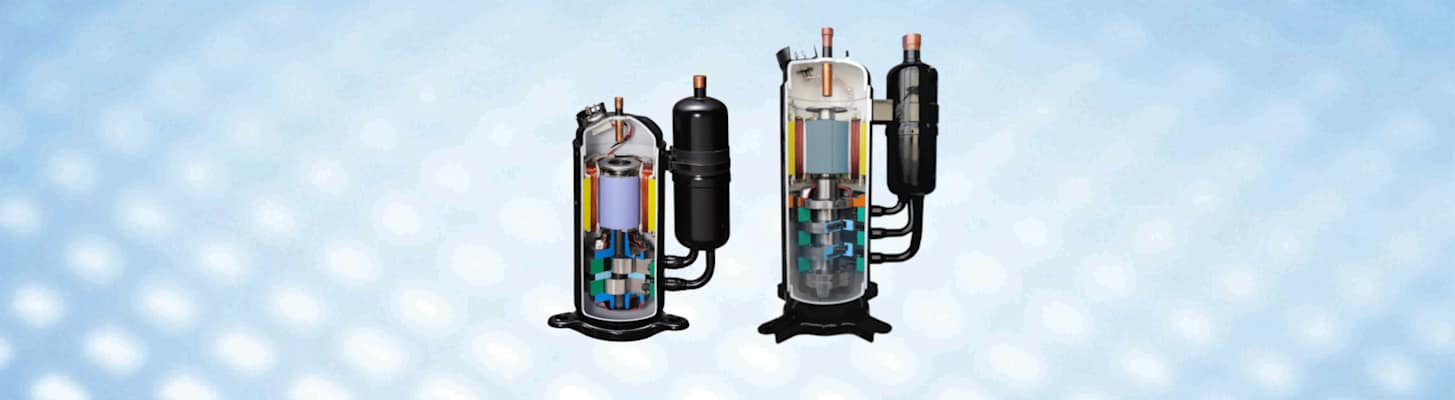

From low-GWP comfort cooling to transcritical CO₂ refrigeration, Toshiba Rotary compressors provide a flexible, variable-speed platform designed for modern HVAC and refrigeration systems.

Supporting R-454B, R-32, and CO₂ (R-744), the lineup covers applications from residential and light commercial HVAC to VRF, chillers, display cases, condensing units, mini racks, and heat pumps.

With permanent magnet motor technology and inverter-driven operation, these compressors deliver improved efficiency, reduced footprint, and strong part-load performance.

For OEMs already using scroll or rotary compressors, Toshiba Rotary provides a practical “drop-in” upgrade—enhancing performance without requiring a full redesign.

Key Advantages

  • High Part-Load Efficiency: Optimized for real-world operating conditions
  • Compact Design: Smaller footprint with up to 30–50% weight reduction
  • Variable-Speed Operation: Inverter duty and VFD controlled
  • Broad Applications: HVAC, refrigeration, CO₂ systems, and heat pumps
Toshiba_Logo_Red_RGB

Product Platforms

R-454B / R-32 Rotary Platform

Available from 22cc to 120cc, with 2- and 3-cylinder configurations, 200V / 400V options, and 2–20 ton nominal capacity.

CO₂ (R-744) Rotary Platform

Subcritical and transcritical solutions designed for refrigeration applications with compact design and variable-speed capability.

Performance & Physical Data – R-454B


Type
Series		 Displacement
200V
400V		 Rated 60rps Max Capacity
cm³ cu in Btu/hr Ton Btu/hr Ton
Twin A1 21.4cc 1.30 ● - 21,500 1.8 32,250 2.7
A2 38cc 2.32 ● - 40,600 3.4 60,900 5.1

A3		 42cc 2.56 ● - 45,200 3.8 86,654 7.3
77cc 4.70 ▲ ● 82,400 6.9 123,600 10.3
Triple K4 120cc 7.32 ▲ ● 123,690 10.4 226,765 19.0

Performance & Physical Data – R-32


Type
Series		 Displacement
200V
400V		 Rated 60rps Max Capacity
cm3 cu in Btu/hr Ton Btu/hr Ton
Single F0 6.6cc 0.40 ● - 7,336 0.6 11,004 0.9
8.9cc 0.55 ● - 10,083 0.8 15,124 1.3
Twin A1 11.1cc 0.68 ● - 12,386 1.0 24,772 2.1
13.6cc 0.83 ● - 15,423 1.3 30,846 2.6
15cc 0.91 ● - 17,265 1.4 34,531 2.9
17.5cc 1.07 ● - 19,620 1.6 39,240 3.3
21.4cc 1.30 ● - 23,885 2.0 35,827 3.0
A2 22cc 1.34 ● - 25,250 2.1 37,875 3.2
33cc 2.01 ● ● 37,534 3.1 56,300 4.7
38cc 2.32 ● ● 45,040 3.8 67,560 5.7
A3 38cc 2.32 ● - 45,040 3.8 67,560 5.7
42cc 2.56 ● ● 49,544 4.2 74,316 6.2
64cc 3.91 - ● 74,555 6.2 130,472 10.9
A4 100cc 6.10 ● ● 122,155 10.2 203,591 17.0
Triple K4 120cc 7.32 ▲ ● 140,341 11.8 257,293 21.5

Performance & Physical Data – CO2 (R-744)


Solution
Displacement
Type
200V
400V		 Rated 60rps Max Capacity
Btu/hr Ton Btu/hr Ton
Subcritical 3cc Normal ● - 6,210 0.5 10,350 0.9
Balance pipe ● - 6,210 0.5 10,350 0.9
Horizontal ● - 6,142 0.5 10,236 0.9
4.5cc Normal ● - 9,622 0.8 16,037 1.3
Balance pipe ● - 9,622 0.8 16,037 1.3
Horizontal ● - 9,519 0.8 15,866 1.3
6.7cc Normal ● - 14,399 1.2 23,999 2.0
Balance pipe ● - 14,399 1.2 23,999 2.0
Horizontal ● - 14,330 1.2 23,885 2.0
10cc Normal ● - 22,076 1.8 29,435 2.5
Normal - ● 22,076 1.8 36,794 3.1
Balance pipe - ● 22,076 1.8 36,794 3.1
Horizontal - ● 21,973 1.8 36,624 3.1
Transcritical 4.5 / 2.9cc 2-stage ● - 5,698 0.5 6,648 0.6
6.7 / 4.3cc 2-stage ● - 8,871 0.7 10,350 0.9

● Off the shelf commercial VFD applicable
▲ Custom VFD required

Connect with Our Team

For preliminary data, while these Toshiba Rotary Compressors are under final development, Work with our sales and engineering experts to select the right rotary solution, validate VFD integration, and request samples for testing.
