06CC 06CC
06CC

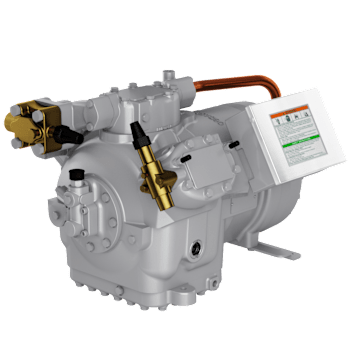

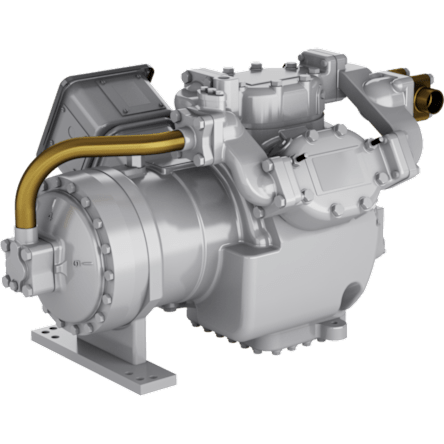

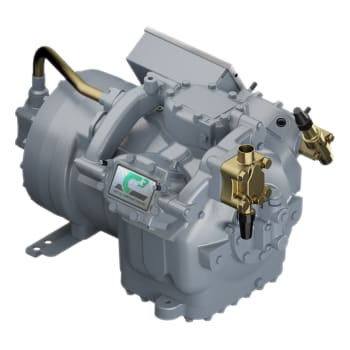

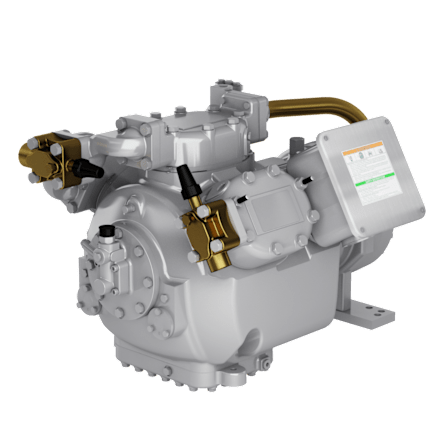

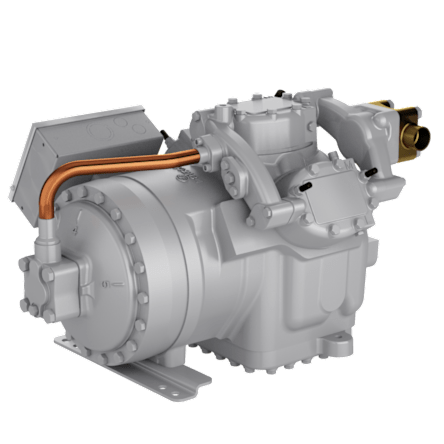

Compound Cooling Compressors
5 to 30 Nominal HP
16 to 99 Nominal Cfm
Features
- Carlyle's innovative design makes it literally two compressors in one, with both high and low stages built in.
- Narrow-seat valve design makes it the most efficient low-temp compressor on the market in both HCFC and HFC applications in the 6 1/2 HP to 30 HP ranges.
- Optimizes System Operation.
- Compatible with HFC refrigerants and POE oil in single, multiplexed and parallel system design configurations.
- Utilizing liquid subcooling minimizes liquid temperature fluctuation to TXVs on systems incorporating floating condensing temperatures.
Performance & Physical Data
| Size | Replacement Model Number | (HP) | Airflow @1750 RPM (cfm) | Number of Cylinders | Oil Change (pints) | Net Weight (lb) |
|---|---|---|---|---|---|---|
| 06CC125 | 06CY125 | 6.5 | 23.9 | 6 | 9.5 | 335 |
| 06CC228 | 06CY228 | 7.5 | 28 | 6 | 9.5 | 330 |
| 06CC337 | 06CY337 | 10 | 37.1 | 6 | 9.5 | 345 |
| 06CC550 | 06CY550 | 15 | 50.3 | 6 | 19 | 545 |
| 06CC665 | 06CY665 | 20 | 68.3 | 6 | 19 | 555 |
| 06CC675 | 06CY675 | 20 | 75.4 | 6 | 19 | 555 |
| 06CC899 | 06CY899 | 30 | 99 | 6 | 19 | 580 |
Features
- Carlyle's innovative design makes it literally two compressors in one, with both high and low stages built in.
- Narrow-seat valve design makes it the most efficient low-temp compressor on the market in both HCFC and HFC applications in the 6 1/2 HP to 30 HP ranges.
- Optimizes System Operation.
- Compatible with HFC refrigerants and POE oil in single, multiplexed and parallel system design configurations.
- Utilizing liquid subcooling minimizes liquid temperature fluctuation to TXVs on systems incorporating floating condensing temperatures.
Performance & Physical Data
| Size | Replacement Model Number | (HP) | Airflow @1750 RPM (cfm) | Number of Cylinders | Oil Change (pints) | Net Weight (lb) |
|---|---|---|---|---|---|---|
| 06CC125 | 06CY125 | 6.5 | 23.9 | 6 | 9.5 | 335 |
| 06CC228 | 06CY228 | 7.5 | 28 | 6 | 9.5 | 330 |
| 06CC337 | 06CY337 | 10 | 37.1 | 6 | 9.5 | 345 |
| 06CC550 | 06CY550 | 15 | 50.3 | 6 | 19 | 545 |
| 06CC665 | 06CY665 | 20 | 68.3 | 6 | 19 | 555 |
| 06CC675 | 06CY675 | 20 | 75.4 | 6 | 19 | 555 |
| 06CC899 | 06CY899 | 30 | 99 | 6 | 19 | 580 |
