06Z 06Z
06Z

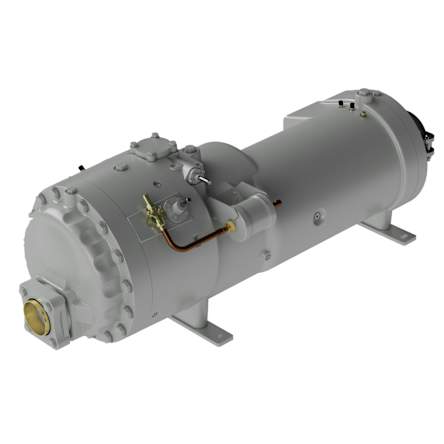

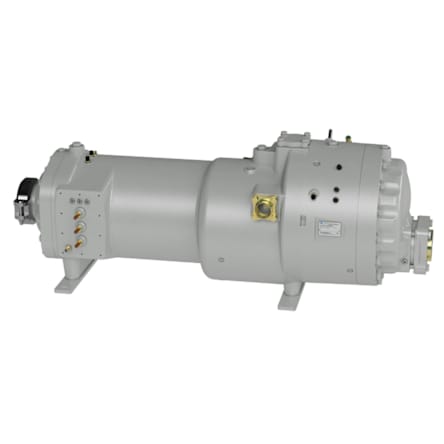

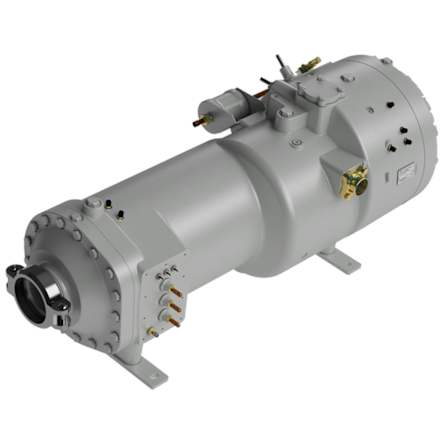

Semi-Hermetic
Twin-Screw Compressor
Variable Speed For Perfect Load Matching
130 - 325 Nominal HP
170 - 787 Nominal CFM
Features
- VFD Variable speed for perfect load matching
- Capacity control range 25 Hz to 105 Hz VFD overspeed
- Automatic unloaded starting and continuous unloading down to 20%
- Compatible with R-1234ze, R-134a, R-513A
- Three frame sizes; Tonnage for tonnage, chassis are smaller than conventional twin screw models
- Semi-hermetic design
- Wide operating envelope
- Easy application, high efficiency, and reliability
- Patented rotor profile geometry produced on state-of-the-art manufacturing processes for unequaled performance
- Built in Vi valve provides optimal performance at both full and part-load conditions
- Excellent Internal Part Load efficiencies (IPLV), VI piston control
- Dependable Rolling Element Bearing design with sealed cavity for reduced loads 2 million hours design life
- Oil pump is not required
- Optimized casting design
- Integrated check valve for quiet shutdown and flexibility to use multiple compressors in parallel
- High efficiency, suction cooled motor with integrated NTC winding sensor for thermal protection
- Pre-engineered oil management accessories and flexible oil separator selections to match design requirements
- Extend high SST/SDT operating envelope for Heat Pump applications
- Integrated discharge muffler to reduce gas pulsations
- Permanent Magnetic motors
- 100% factory run tested
Performance & Physical Data
| Model | Motor
Size |
Displacement
|
Net Weight | Dimensions | Suction
Line Size (in) |
Discharge
Line Size (in) |
|||
|---|---|---|---|---|---|---|---|---|---|
| HP | CFM | Lb | Kgs | Length (in) | Width (in) | Height (in) | |||
| 06ZC | 130 | 170 | 1,717 | 779 | 50 | 20 | 21 | 4 | 3 1/8 |
| 06ZF | 215 | 299 | 2,199 | 998 | 56 | 21 | 23 | 5 | 4 1/8 |
| 06ZJ | 325 | 497 | 2,893 | 1,312 | 62 | 22 | 24 | 6 | 5" 150# |
