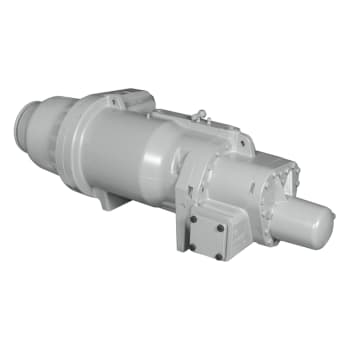

Paragon 06TU
Paragon
06TU
Semi-Hermetic
Twin-Screw Compressor
For Air- and Water-Cooled Condensing Operation
225 Nominal HP
483 to 554 Nominal Cfm
Features
- Easy application, high efficiency, and reliability
- Compatible with R-134a
- Patented rotor profile geometry produced on state-of-the-art manufacturing processes for unequaled performance
- Automatic unloaded starting and continuous unloading down to 25%, with built-in Vi compensation at part load
- Dependable rolling element bearing design with sealed cavity for reduced loads
- Oil pump is not required
- 100% factory run tested
- Integrated check valve for quiet shutdown and flexibility to use multiple compressors in parallel
- High efficiency, suction cooled motor with integrated NTC winding sensor for thermal protection
- Pre-engineered oil management accessories and flexible oil separator selections to match design requirements
- Standard commercial marine parts warranty, OEM-backed
Weights & Dimensions (English Units)
| Model | Weight (lb) | Height (in) | Width (in) | Length (in) |
|---|---|---|---|---|
| 06TU-483--- | 2018 | 21 | 23 | 58 |
| 06TU-554--- | 2108 | 21 | 23 | 60 |
Weights & Dimensions (Metric Units)
| Model | Weight (kg) | Height (mm) | Width (mm) | Length (mm) |
|---|---|---|---|---|
| 06TU-483--- | 915 | 531 | 591 | 1466 |
| 06TU-554--- | 956 | 531 | 591 | 1514 |
Features
- Easy application, high efficiency, and reliability
- Compatible with R-134a
- Patented rotor profile geometry produced on state-of-the-art manufacturing processes for unequaled performance
- Automatic unloaded starting and continuous unloading down to 25%, with built-in Vi compensation at part load
- Dependable rolling element bearing design with sealed cavity for reduced loads
- Oil pump is not required
- 100% factory run tested
- Integrated check valve for quiet shutdown and flexibility to use multiple compressors in parallel
- High efficiency, suction cooled motor with integrated NTC winding sensor for thermal protection
- Pre-engineered oil management accessories and flexible oil separator selections to match design requirements
- Standard commercial marine parts warranty, OEM-backed
Weights & Dimensions (English Units)
| Model | Weight (lb) | Height (in) | Width (in) | Length (in) |
|---|---|---|---|---|
| 06TU-483--- | 2018 | 21 | 23 | 58 |
| 06TU-554--- | 2108 | 21 | 23 | 60 |
Weights & Dimensions (Metric Units)
| Model | Weight (kg) | Height (mm) | Width (mm) | Length (mm) |
|---|---|---|---|---|
| 06TU-483--- | 915 | 531 | 591 | 1466 |
| 06TU-554--- | 956 | 531 | 591 | 1514 |
