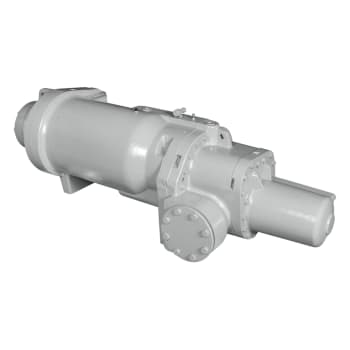

Paragon 06TV
Paragon
06TV
Semi-Hermetic
Twin-Screw Compressor
For Water-Cooled Condensing Operation
225 Nominal HP
680 to 819 Nominal CFM
Features
- Easy application, high efficiency, and reliability
- Compatible with R-134a
- Patented rotor profile geometry produced on state-of-the-art manufacturing processes for unequaled performance
- Automatic unloaded starting and continuous unloading down to 25%, with built-in Vi compensation at part load
- Dependable rolling element bearing design with sealed cavity for reduced loads
- Oil pump is not required
- 100% factory run tested
- Integrated check valve for quiet shutdown and flexibility to use multiple compressors in parallel
- High efficiency, suction cooled motor with integrated NTC winding sensor for thermal protection
- Pre-engineered oil management accessories and flexible oil separator selections to match design requirements
- Standard commercial marine parts warranty, OEM-backed
Performance & Physical Data
| Model | Temperature
Duty |
Motor
Size |
Displacement | Application | Net Weight | Dimensions | Suction
Line Size (in) |
Discharge
Line Size (in) |
|||
|---|---|---|---|---|---|---|---|---|---|---|---|
| HP | CFM | Lb | Kgs | Length (in) | Width (in) | Height (in) | |||||
| 06TVA680 | High & Medium | 340 | 680 | Air-Cooled | 2,585 | 1,173 | 68 | 24 | 23 | 6" 150# | 5" 150# |
| 06TVA753 | High & Medium | 340 | 753 | Air-Cooled | 2,608 | 1,183 | 68 | 24 | 23 | 6" 150# | 5" 150# |
| 06TVA819 | High & Medium | 340 | 819 | Air-Cooled | 2,626 | 1,191 | 68 | 24 | 23 | 6" 150# | 5" 150# |
| 06TVW680 | High & Medium | 225 | 680 | Water Cooled | 2,585 | 1,173 | 68 | 24 | 23 | 6" 150# | 5" 150# |
| 06TVW753 | High & Medium | 225 | 753 | Water Cooled | 2,608 | 1,183 | 68 | 24 | 23 | 6" 150# | 5" 150# |
| 06TVW819 | High & Medium | 225 | 819 | Water Cooled | 2,626 | 1,191 | 68 | 24 | 23 | 6" 150# | 5" 150# |
Features
- Easy application, high efficiency, and reliability
- Compatible with R-134a
- Patented rotor profile geometry produced on state-of-the-art manufacturing processes for unequaled performance
- Automatic unloaded starting and continuous unloading down to 25%, with built-in Vi compensation at part load
- Dependable rolling element bearing design with sealed cavity for reduced loads
- Oil pump is not required
- 100% factory run tested
- Integrated check valve for quiet shutdown and flexibility to use multiple compressors in parallel
- High efficiency, suction cooled motor with integrated NTC winding sensor for thermal protection
- Pre-engineered oil management accessories and flexible oil separator selections to match design requirements
- Standard commercial marine parts warranty, OEM-backed
Performance & Physical Data
| Model | Temperature
Duty |
Motor
Size |
Displacement | Application | Net Weight | Dimensions | Suction
Line Size (in) |
Discharge
Line Size (in) |
|||
|---|---|---|---|---|---|---|---|---|---|---|---|
| HP | CFM | Lb | Kgs | Length (in) | Width (in) | Height (in) | |||||
| 06TVA680 | High & Medium | 340 | 680 | Air-Cooled | 2,585 | 1,173 | 68 | 24 | 23 | 6" 150# | 5" 150# |
| 06TVA753 | High & Medium | 340 | 753 | Air-Cooled | 2,608 | 1,183 | 68 | 24 | 23 | 6" 150# | 5" 150# |
| 06TVA819 | High & Medium | 340 | 819 | Air-Cooled | 2,626 | 1,191 | 68 | 24 | 23 | 6" 150# | 5" 150# |
| 06TVW680 | High & Medium | 225 | 680 | Water Cooled | 2,585 | 1,173 | 68 | 24 | 23 | 6" 150# | 5" 150# |
| 06TVW753 | High & Medium | 225 | 753 | Water Cooled | 2,608 | 1,183 | 68 | 24 | 23 | 6" 150# | 5" 150# |
| 06TVW819 | High & Medium | 225 | 819 | Water Cooled | 2,626 | 1,191 | 68 | 24 | 23 | 6" 150# | 5" 150# |
