06M 06M
06M
Semi-Hermetic
Reciprocating Compressor
9 to 15 Nominal HP
15.5 to 24.1 Nominal CFM

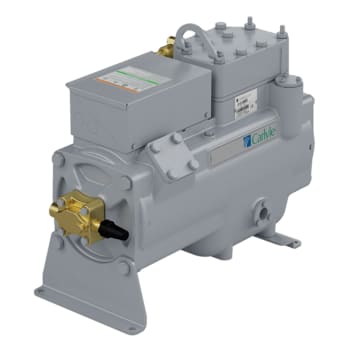

The 06M semi-hermetic reciprocating compressor combines proven durability, flexible capacity control, and variable-speed operation for R-454B and R-410A air conditioning, heat pump, and process cooling applications
Features
- Optimized for R-454B and R-410A refrigerants.
- Proven Carlyle reliability and durability. Same high standards as the 06D and 06E compressors.
- Factory-installed compressor protection module replacing external overloads and calibrated circuit breakers.
- Wide operating envelope.
- Variable-speed operation from 20-80 Hz.
- Flexible capacity control options.

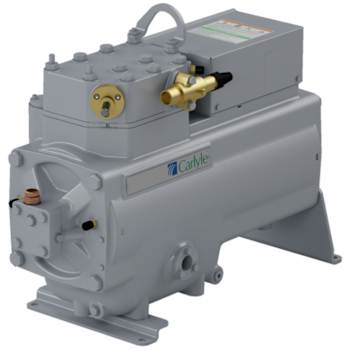

- Suction cut-off unloading capacity control.
- High-efficiency compression technology.
- Fully serviceable semi-hermetic design. Serviceability – motor, valve plate, terminal plate, terminal box, oil pump field replaceable.
- Dual suction ports for installation flexibility.
- Smaller installation footprint – 4” narrower then the 06D compressor.
Performance & Physical Data
| Model | Motor
Size |
Displacement
at 1750 RPM |
Number
of Cylinders |
Oil Charge | Net Weight | Dimensions | Suction
Line Size (in) |
Discharge
Line Size (in) |
||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HP | CFM | Pints | Liters | Lb | Kgs | Length (in) | Width (in) | Height (in) | ||||
| 06MB015 | 9 | 15.5 | 3 | 5.8 | 2.7 | 379 | 172 | 29 | 13 | 22 | 1-1/8" | 7/8" |
| 06MB018 | 11 | 18.4 | 3 | 5.8 | 2.7 | 384 | 174 | 29 | 13 | 22 | 1-1/8" | 7/8" |
| 06MB021 | 13 | 21.2 | 3 | 5.8 | 2.7 | 387 | 176 | 29 | 13 | 22 | 1-3/8" | 1-1/8" |
| 06MB024 | 15 | 24.1 | 3 | 5.8 | 2.7 | 392 | 178 | 29 | 13 | 22 | 1-3/8" | 1-1/8" |
The 06M semi-hermetic reciprocating compressor combines proven durability, flexible capacity control, and variable-speed operation for R-454B and R-410A air conditioning, heat pump, and process cooling applications
Features
- Optimized for R-454B and R-410A refrigerants.
- Proven Carlyle reliability and durability. Same high standards as the 06D and 06E compressors.
- Factory-installed compressor protection module replacing external overloads and calibrated circuit breakers.
- Wide operating envelope.
- Variable-speed operation from 20-80 Hz.
- Flexible capacity control options.
- Suction cut-off unloading capacity control.
- High-efficiency compression technology.
- Fully serviceable semi-hermetic design. Serviceability – motor, valve plate, terminal plate, terminal box, oil pump field replaceable.
- Dual suction ports for installation flexibility.
- Smaller installation footprint – 4” narrower then the 06D compressor.
Performance & Physical Data
| Model | Motor
Size |
Displacement
at 1750 RPM |
Number
of Cylinders |
Oil Charge | Net Weight | Dimensions | Suction
Line Size (in) |
Discharge
Line Size (in) |
||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HP | CFM | Pints | Liters | Lb | Kgs | Length (in) | Width (in) | Height (in) | ||||
| 06MB015 | 9 | 15.5 | 3 | 5.8 | 2.7 | 379 | 172 | 29 | 13 | 22 | 1-1/8" | 7/8" |
| 06MB018 | 11 | 18.4 | 3 | 5.8 | 2.7 | 384 | 174 | 29 | 13 | 22 | 1-1/8" | 7/8" |
| 06MB021 | 13 | 21.2 | 3 | 5.8 | 2.7 | 387 | 176 | 29 | 13 | 22 | 1-3/8" | 1-1/8" |
| 06MB024 | 15 | 24.1 | 3 | 5.8 | 2.7 | 392 | 178 | 29 | 13 | 22 | 1-3/8" | 1-1/8" |
