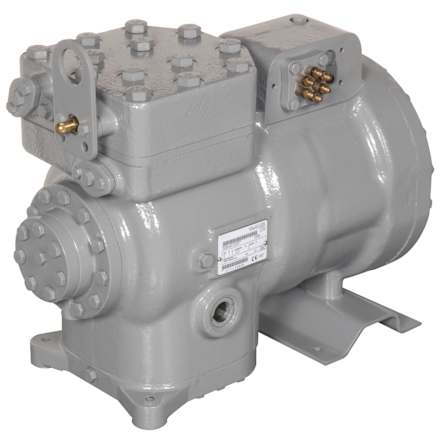

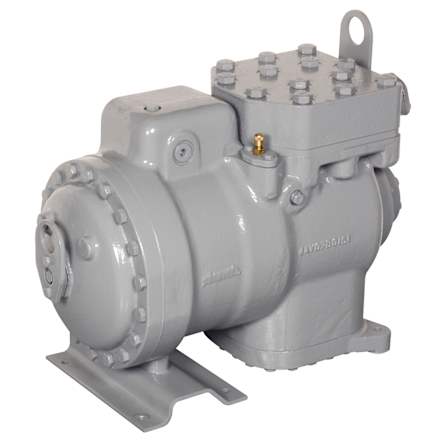

Semi-Hermetic Transcritical CO2
Reciprocating Two-Stage Compressor
5 Nominal HP
3.4 Nominal CFM
Features
- Designed specifically for R-744 (CO2).
- VFD Variable speed 20-110Hz for precise load matching
- Wide operating envelope
- Semi-hermetic design
- Two-cylinder, two-stage design allows for intercooling and/or mechanical subcooling between stages
- Small footprint
- Positive displacement oil pump for enhanced reliability
Performance & Physical Data
| Model | Motor
Size |
Displacement
at 1750 RPM |
Number
of Cylinders |
Oil Charge | Net Weight | Dimensions | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| HP | CFM | Pints | Liters | Lb | Kgs | Length / depth (in) | Width (in) | Height (in) | ||
| 06VHCGPA1E20 | 5 | 3.4 | 2 | 4.2 | 2.0 | 325 | 147 | 23 | 11 | 17 |
Features
- Designed specifically for R-744 (CO2).
- VFD Variable speed 20-110Hz for precise load matching
- Wide operating envelope
- Semi-hermetic design
- Two-cylinder, two-stage design allows for intercooling and/or mechanical subcooling between stages
- Small footprint
- Positive displacement oil pump for enhanced reliability
Performance & Physical Data
| Model | Motor
Size |
Displacement
at 1750 RPM |
Number
of Cylinders |
Oil Charge | Net Weight | Dimensions | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| HP | CFM | Pints | Liters | Lb | Kgs | Length / depth (in) | Width (in) | Height (in) | ||
| 06VHCGPA1E20 | 5 | 3.4 | 2 | 4.2 | 2.0 | 325 | 147 | 23 | 11 | 17 |
