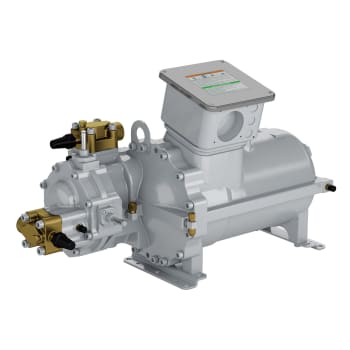

06T 06T
06T
Semi-Hermetic
Twin Screw Compressor
15 to 50 Nominal HP
33 to 54 Nominal CFM
Features
- Semi-hermetic twin screw compressor design delivers reliable, efficient performance across a wide operating range.
- Up to 50% higher capacity than comparable reciprocating compressors while maintaining a compact footprint.
- 15% smaller and lighter than similar reciprocating compressor technologies, reducing equipment space requirements.
- Fewer moving parts than reciprocating designs, improving reliability and reducing maintenance needs.
- Liquid flood-back tolerant design with no suction or discharge reed valves, helping protect the compressor under demanding operating conditions.
- Supports high, medium, and low temperature applications, providing flexibility across commercial and industrial refrigeration systems.
- Compatible with multiple refrigerants, including R-448A, R-449A, R-404A, R-507A, and R-134a.
- High-pressure oil feed system eliminates the need for an oil pump, enhancing durability and reducing potential failure points.
- Vapor injection capability enables mechanical subcooling to boost system capacity, efficiency, and temperature stability.
- Standardized platform design featuring common footprints and connection locations across all model sizes, simplifying installation and service.
Performance & Physical Data
| Model | Motor
Size |
Displacement
|
Net Weight | Dimensions | Suction
Line Size (in) |
Discharge
Line Size (in) |
|||
|---|---|---|---|---|---|---|---|---|---|
| HP | CFM | Lb | Kgs | Length (in) | Width (in) | Height (in) | |||
| 06TRC033 | 15 | 33 | 365 | 166 | 33 | 15 | 20 | 1 5/8 | 1 3/8 |
| 06TRD039 | 20 | 39 | 380 | 172 | 33 | 15 | 20 | 1 5/8 | 1 3/8 |
| 06TRD044 | 20 | 44 | 380 | 172 | 33 | 15 | 20 | 1 5/8 | 1 3/8 |
| 06TRE048 | 25 | 48 | 390 | 177 | 33 | 15 | 20 | 1 5/8 | 1 3/8 |
| 06TRE054 | 25 | 54 | 390 | 177 | 33 | 15 | 20 | 1 5/8 | 1 3/8 |
| 06TRF065 | 30 | 65 | 400 | 181 | 33 | 15 | 20 | 1 5/8 | 1 5/8 |
| 06TRG078 | 35 | 78 | 405 | 184 | 33 | 15 | 20 | 1 5/8 | 1 5/8 |
| 06TRH088 | 40 | 88 | 405 | 184 | 33 | 15 | 20 | 1 5/8 | 1 5/8 |
Features
- Semi-hermetic twin screw compressor design delivers reliable, efficient performance across a wide operating range.
- Up to 50% higher capacity than comparable reciprocating compressors while maintaining a compact footprint.
- 15% smaller and lighter than similar reciprocating compressor technologies, reducing equipment space requirements.
- Fewer moving parts than reciprocating designs, improving reliability and reducing maintenance needs.
- Liquid flood-back tolerant design with no suction or discharge reed valves, helping protect the compressor under demanding operating conditions.
- Supports high, medium, and low temperature applications, providing flexibility across commercial and industrial refrigeration systems.
- Compatible with multiple refrigerants, including R-448A, R-449A, R-404A, R-507A, and R-134a.
- High-pressure oil feed system eliminates the need for an oil pump, enhancing durability and reducing potential failure points.
- Vapor injection capability enables mechanical subcooling to boost system capacity, efficiency, and temperature stability.
- Standardized platform design featuring common footprints and connection locations across all model sizes, simplifying installation and service.
Performance & Physical Data
| Model | Motor
Size |
Displacement
|
Net Weight | Dimensions | Suction
Line Size (in) |
Discharge
Line Size (in) |
|||
|---|---|---|---|---|---|---|---|---|---|
| HP | CFM | Lb | Kgs | Length (in) | Width (in) | Height (in) | |||
| 06TRC033 | 15 | 33 | 365 | 166 | 33 | 15 | 20 | 1 5/8 | 1 3/8 |
| 06TRD039 | 20 | 39 | 380 | 172 | 33 | 15 | 20 | 1 5/8 | 1 3/8 |
| 06TRD044 | 20 | 44 | 380 | 172 | 33 | 15 | 20 | 1 5/8 | 1 3/8 |
| 06TRE048 | 25 | 48 | 390 | 177 | 33 | 15 | 20 | 1 5/8 | 1 3/8 |
| 06TRE054 | 25 | 54 | 390 | 177 | 33 | 15 | 20 | 1 5/8 | 1 3/8 |
| 06TRF065 | 30 | 65 | 400 | 181 | 33 | 15 | 20 | 1 5/8 | 1 5/8 |
| 06TRG078 | 35 | 78 | 405 | 184 | 33 | 15 | 20 | 1 5/8 | 1 5/8 |
| 06TRH088 | 40 | 88 | 405 | 184 | 33 | 15 | 20 | 1 5/8 | 1 5/8 |
